Purge Gas Hydrogen Recovery Technology
This technology adopts an advanced pressure swing adsorption (PSA) gas separation unit to efficiently purify the purge gas delivered from the ammonia washing recovery post of the synthesis workshop. Through a series of sophisticated process steps, the hydrogen purity in the gas is raised to over 95%. The recovered product hydrogen is sent to the inlet main pipe of the first stage of the compressor for subsequent production; the desorbed gas is fed into the boiler water seal tank and then into the combustion chamber of the gas-fired boiler, realizing energy recycling and greatly improving the resource circulation utilization rate.
■ Technical Features
· Strong adaptability to feed gas, capable of treating complex gas mixtures;· Efficient core process adopting mature multi-tower pressure swing adsorption technology;
· Fully automatic operation with easy maintenance;
· Safe, environmentally friendly with outstanding economic benefits.
■ Main Performance Indicators
· Unit capacity: 5,000 ~ 150,000 Nm³/h· Feed hydrogen concentration: 30% ~ 80%
· Operating pressure (inlet): 1.8 ~ 8.0 MPa
· Operating temperature: 10 ~ 50℃
· Product hydrogen purity: 99.9% ~ 99.999%
■ Scope of Application

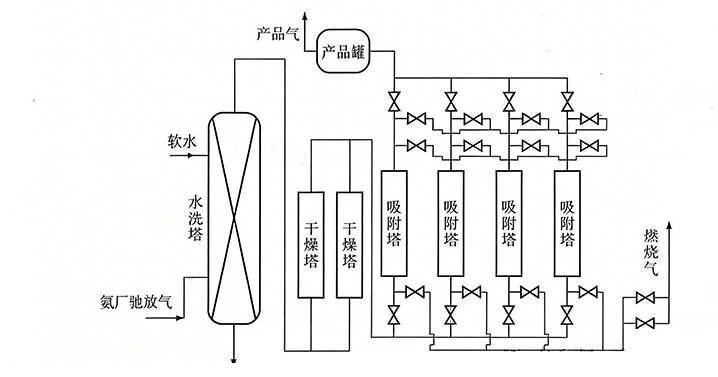

It can efficiently treat purge gas emitted from processes such as synthetic ammonia, methanol, oil refining, coal chemical industry and others.■ Process Flow Diagram
