Natural Gas Hydrogen Blending Technology
The premixing system of this technology calculates the hydrogen flow rate according to the required hydrogen blending ratio based on measured data. The hydrogen flow is then regulated by a mass flow controller or proportional control valve, and finally mixed in a surge tank to achieve the target hydrogen blending ratio.
■ Technical Features
· The equipment is designed in accordance with national standards for hydrogen production stations, with explosion-proof design applied throughout the process, ensuring safe and reliable operation.· Highly automated and data-driven operation with intelligent core processes; ready for immediate use and producing hydrogen within seconds.
· Single unit supports adjustable flow rate, heating mode and pressure, with real-time online monitoring. It can be interlocked with hydrogen-using equipment, and is equipped with automatic fault alarm and shutdown functions. Operation data supports remote monitoring.
· Special valves with a trouble-free service life of 5 million frequent switching cycles are adopted to ensure stable system operation.
· Explosion-proof secondary development of instruments and meters provides effective guarantee for equipment safety.
· Adopts a visual human-machine interface (HMI) that displays various system parameters and allows corresponding parameter adjustment.

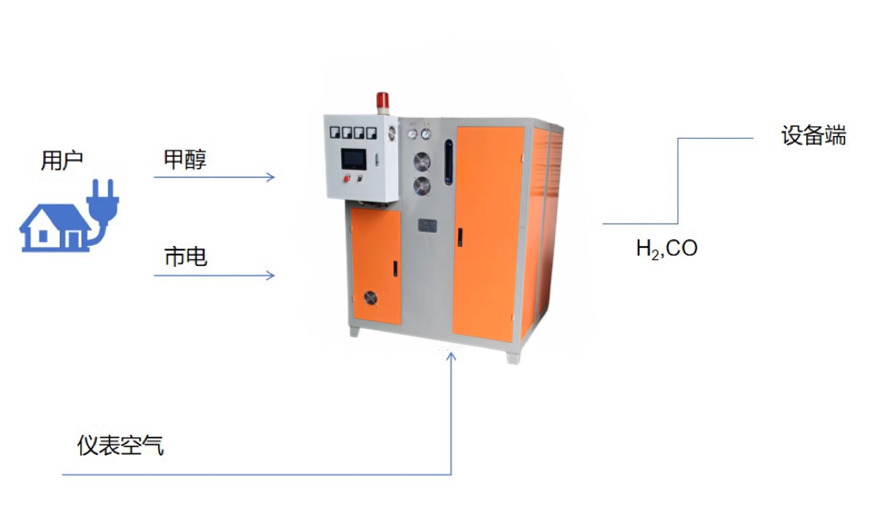

■ Process Flow Diagram
