Hydrogen Production Technology from Biomass
Biomass reacts with oxygen supplied by the VPSA oxygen generation system in a gasifier. After passing through a catalytic reactor, the gas is sequentially treated by a cooling tower, heat exchanger, sedimentation tank, two-stage spray system, gas-liquid separator and electrical tar precipitator. It is then buffered in a gas holder and finally purified by the pressure swing adsorption hydrogen extraction system. The produced hydrogen is stored in tanks and supplied as heat source.
■ Technical Features
· Renewable and abundant feedstock: using agricultural and forestry waste, organic wastewater and other recyclable materials;· Low-carbon, environmentally friendly and emission-reducing: low life-cycle carbon emissions with minimal pollution from reactions;
· Significant cost advantage: low feedstock acquisition cost without reliance on fossil fuels;
· Diverse technologies with wide adaptability: optional thermochemical and biological routes suitable for different-scale applications.

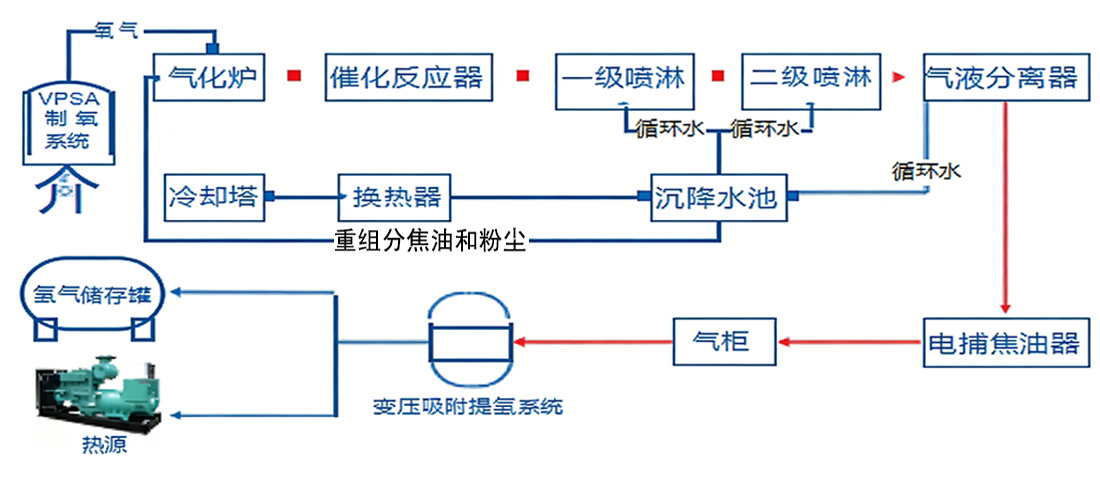

■ Process Flow Diagram
