Gas Purification & Upgrading

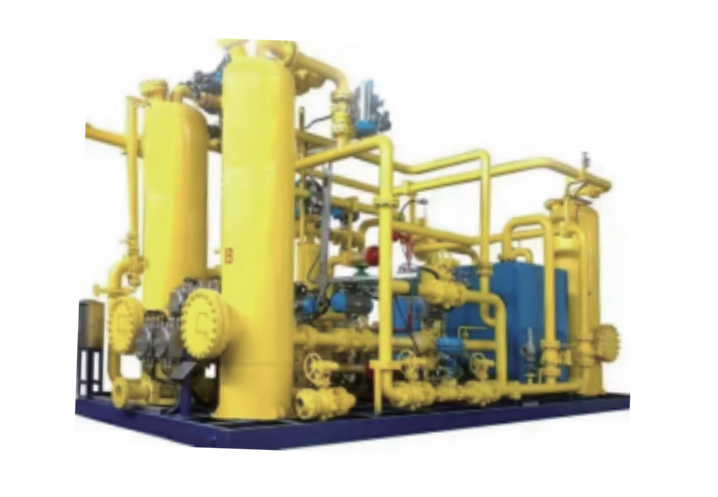

Hydrogen Dehydration

Hydrogen dehydration units are mainly used to remove trace moisture from hydrogen gas, preventing ice blockage or equipment corrosion caused by freezing in subsequent low-temperature processes such as liquid hydrogen production, chemical reactions or fuel cell applications.

Its core technology generally adopts the adsorption drying method: wet hydrogen passes through a tower filled with high-performance desiccants (such as activated alumina or molecular sieves), where moisture is selectively adsorbed, significantly lowering the hydrogen dew point to below -40°C or even -70°C.

Product Keywords：Hydrogen Dehydration Unit    Jiarui Gas
Product Inquiry：137-7170-5679
Request a Quote Now Contact
Product description

Hydrogen Dehydration Technology

This technology utilizes the different adsorption characteristics of molecular sieves toward hydrogen and water vapor. Hydrogen gas passes through an adsorption bed at a certain temperature to separate hydrogen from water. The adsorber is then regenerated through pressure reduction, heating and desorption to discharge water, preparing it for the next adsorption cycle.


■ Technical Features

· High efficiency: Hydrogen dehydration technology can remove moisture from hydrogen in a short time and meet low humidity requirements.
· Excellent performance: Special desiccants such as molecular sieves are used to effectively remove water vapor and ensure hydrogen quality.
· Low cost: Compared with other dehydration technologies, hydrogen dehydration has a lower cost.
